Steering rack conversion RHD
Rack and pinion steering VW Beetle RHD – conversion kit without welding – Bild 2

Rack and pinion steering VW Beetle RHD – conversion kit without welding

1.449,00 €

Steering Rack Conversion Assembly Kit

For Right-Hand Drive Volkswagen (Type 11/15/181/14)

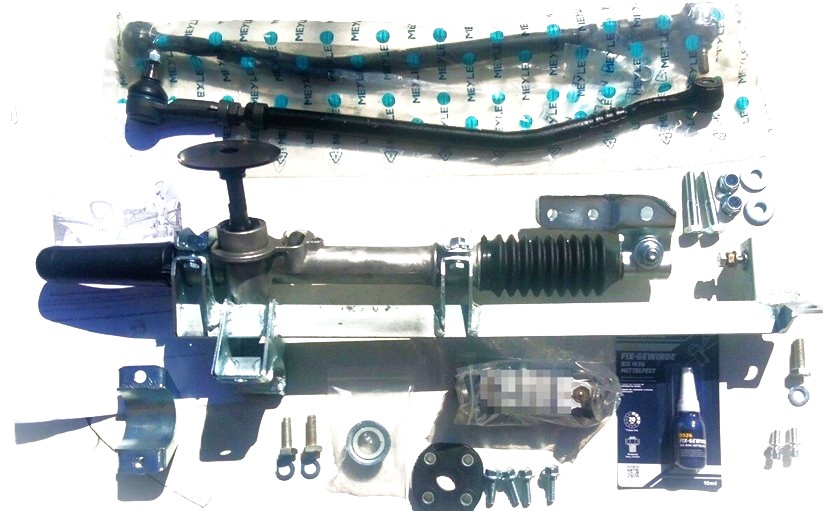

The kit includes the following components:
– Complete steering rack assembly
– New Tie Rods
– New Tie Rod End Set
– Special Joint
– Additional Steering Shaft Bearing
– Hardware Kit to complete Installation
– Installation Guide

  • No welding required
  • Horn wiring remains original, even with a steering column featuring an insulated steering shaft bearing
  • The steering column’s safety feature remains intact
  • original, correct toe-out on turns / Ackerman angle remains
  • Cable routing through the steering shaft remains intact
  • Tie rod ends (Lemförder/Meyle/Febi/FAG) included
  • Steering column supported on both sides through additional Steering shaft bearing

Does your VW’s steering column have an insulated steering shaft bearing? What is meant? …

Artikelnummer: n. a. Kategorie: Schlagwörter: , , ,

Beschreibung

VW Beetle & Karmann Ghia (Type 11,15 & 14) from 8/65 RHD – Right-Hand Drive

Bolt-on installation with no chassis modifications or welding required. The horn’s wiring does not need to be modified. The original steering geometry (toe-out on turns a.k.a. Ackerman angle) remains unchanged, will even be improved. Steering stops do not need to be removed. Therefore, reverting to the factory-installed version is easily possible. The conversion kit fits the original RHD Ball Joint Front Beam. Aftermarket Front Beams may differ. Working on steering components requires specialized knowledge and skills, as well as an understanding of steering geometry, and should be carried out by an experienced workshop or mechanic.

Zusätzliche Informationen

Gewicht 12 kg
